Passive Protection Net

Email：admin@wanhuisteel.com

Phone：+86 15376151173

WhatsApp：+86 15376151173

Inquiry Now →

PRODUCT DESCRIPTION

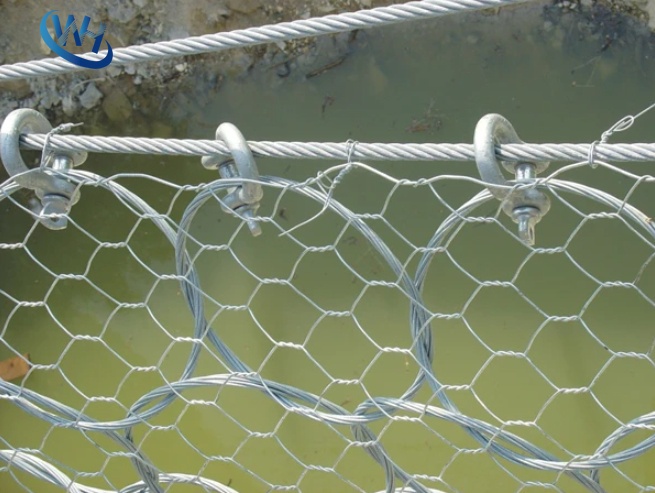

Passive Protection Net are a type of passive protection system composed of hexagonal wire mesh and steel wire ring net, used for rockfall protection and prevention of geological disasters in various slopes, avalanche slopes, bank erosion, blasting rocks, and rockfall materials.

High Tensile Ring Mesh
Ring net type	R-025	R-050	R-075	R-100	R-150	R-200	R-300
Energy absorption capacity (kJ)	250	500	750	1000	1500	2000	3000
Ring net type	R5/3/300	R7/3/300	R7/3/300	R9/3/300	R12/3/300	R16/3/300	R16/3/300
Strands of wire	5	7	7	9	12	16	16
Wire diameter (mm)	3	3	3	3	3	3	3
Ring diameter (mm)	300	350/300	350/300	350/300	300	350/300	300
Rope diameter (mm)	16–18	18–22	14–16	16–18	18–20	18–22	18–22
Distance between posts (m)	8–12	8–12	8–12	8–12	8–12	8–12	8–12
Min./max. Barrier height (m)	46087	4/7.5	4/7.5	46151	6/10.5	46151	6/10.5
Max. deflection distance (m)	4.36	5.8	< 7	8.15	8.45	8.15	8.45
Notes: Let's take the ring net size R7/3/350 as an example. Where R stands for ring net, 7 represents 7 circles, 3 stands for wire diameter, expressed in mm and 350 stands for ring diameter, expressed in mm.

Advantages

High tensile strength and excellent impact resistance

Flexible structure for absorbing dynamic loads

Excellent corrosion resistance for outdoor applications

Lightweight design for easy transportation and installation

Long service life with low maintenance requirements

Suitable for complex geological environments

Applications

Rockfall Protection Systems

Slope Stabilization

Highway and Railway Protection

Mining Safety Barriers

Avalanche Protection

Landslide Prevention

Erosion Control Projects

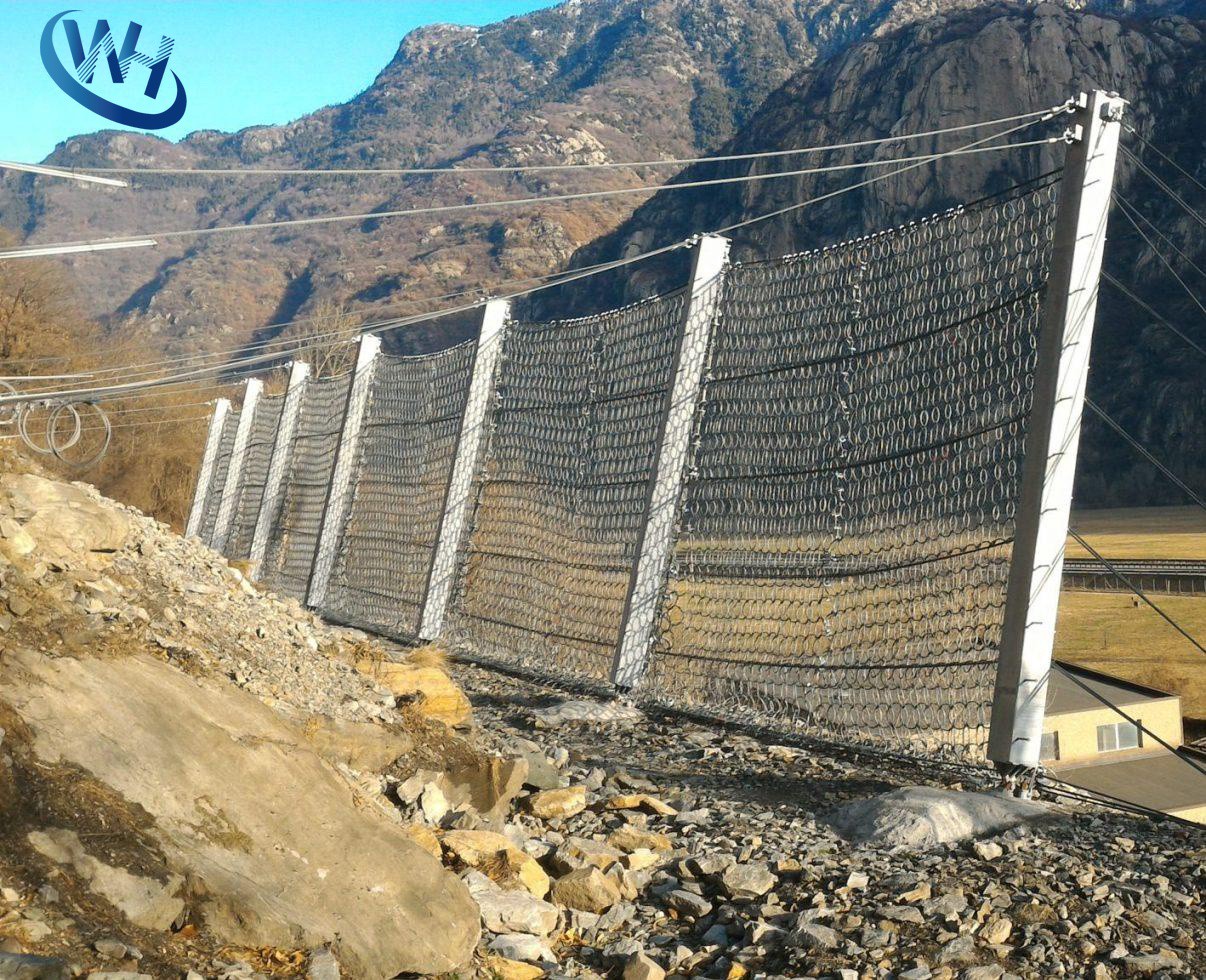

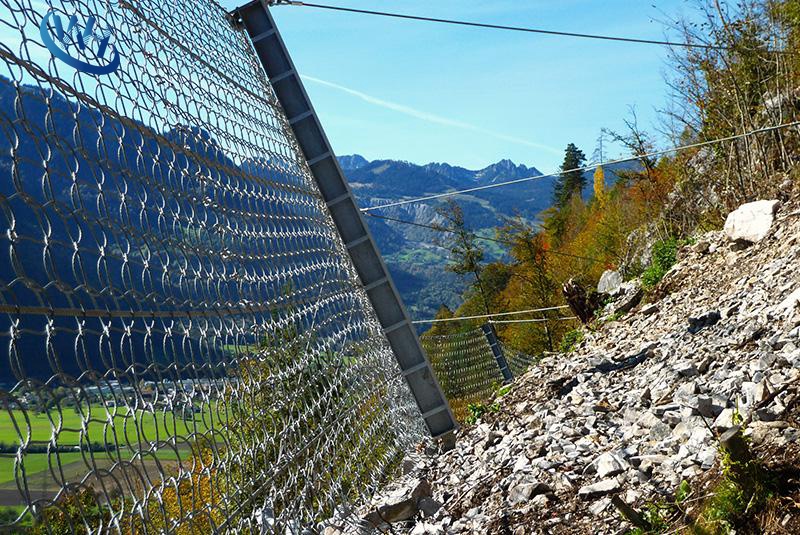

PRODUCT DISPLAY

FAQ

1. What is the raw material for wire mesh?
A:The mesh we produce is made of high-quality stainless steel, carbon steel wires or galvanized steel wires. Also can be customized according to your needs.
2. What opening designs are available for wire mesh?
A:There are square, rectangular, hexagonal, and diamond-shaped wire meshes for sale. You can choose according to your preference and use purpose.
3. Do you provide samples?
A:Of course. We can provide samples. But you need to pay for the freight charge.
4. What’s your MOQ?
According to your needs. Any quantity can be shipped. We are a wholesale supplier and we offer a cheap price. But considering the shipping cost, bulk orders will be more cost-effective.
5. How long does it take for an order to be shipped?
Generally, 7-20 days. It mainly depends on the quantity and specifications of your order. It will take longer for custom products.
